Wooden Products

H20 Beam

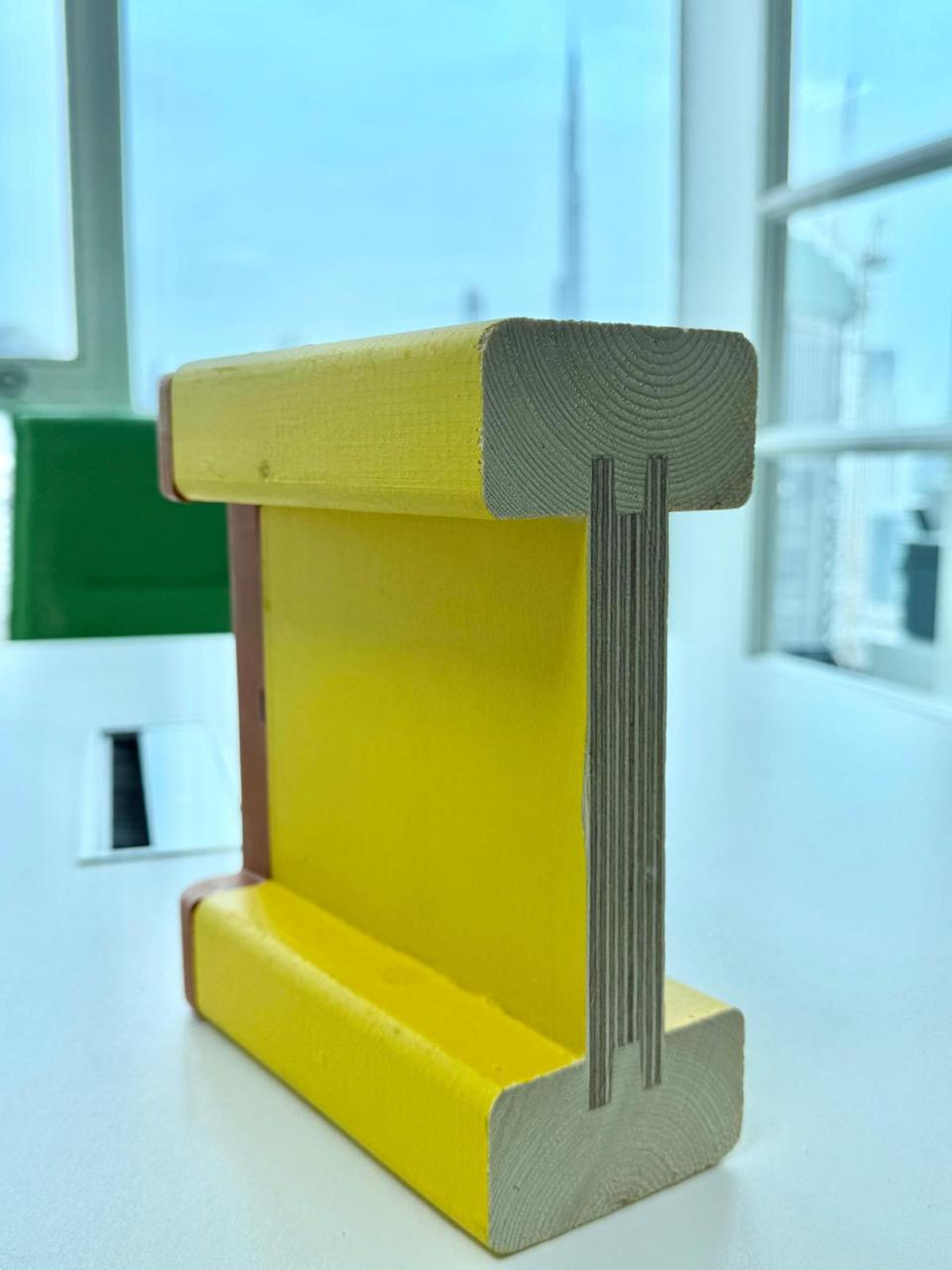

The WS20 CLASSIC+ H20 Beam is a highly durable structural I-beam designed for formwork in civil and industrial monolithic construction. Engineered for maximum load-bearing capacity, it is used to create robust formwork for walls, columns, and slabs. Manufactured from premium northern spruce and birch plywood, these beams ensure high stability, longevity, and dimensional accuracy on the construction site.

Materials

Northern spruce timber flanges and birch plywood web

Profile

200 × 80 mm with 40 mm flanges

Protection

Waterproof coating and protected ends

Request a Quote

About this product

Designed for repeated use in slab, wall, and column formwork systems, H20 Beam combines high load-bearing capacity with low weight for efficient on-site handling.

Applications

Slab formwork systems
Wall and column formwork
Civil and residential building construction
Industrial monolithic projects

Key benefits

High durability and bioresistance

Impregnated with a premium Tikkurila (Finland) primer, protecting against moisture, rot, and fungi

Moisture protection

Beam ends are sealed with water-dispersion varnish or protective plastic caps to prevent moisture absorption in concrete walls

Superior adhesion

Assembled using TRICOL, a specially developed structural one-component polyurethane adhesive for maximum reliability

Technical specifications

Flanges

Spruce timber from northern regions

Structural adhesive

One-component polyurethane adhesive TRICOL

Web (stand)

Water-resistant birch plywood, FSF emission class, thickness 24/27 mm

End protection

Water-dispersion varnish or protective plastic caps

Sizes

Available in various standard lengths
